HRX Rotor

Dependable, Reliable, Versatile

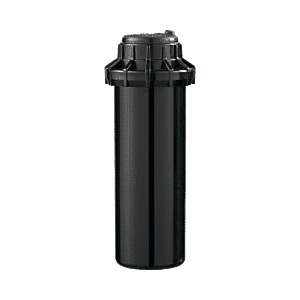

HRX 075

4″ Adjustable Rotor

Hydro-Rain’s top performing rotary sprinkler for lawn and garden areas is the HRX 075. Through its broad selection of precision nozzles, the HRX provides industry-leading distribution uniformity. Putting water where you need it. That is the engineering mission behind the manufacturing of Hydro-Rain’s HRX Series Rotors

Specifications

• Precipitation rate: 0.10 to 1.03 inches per hour
• Radius: 22′ to 52′ (6.7 to 15.9 m)
• Adjustable radius: Radius may be reduced up to 25%
• Maximum radius: 52 feet at 65 psi with number 8 nozzle installed
• Operating Pressure: 30-70 psi (2.1 to 4.8 Bars: 206 to 482 kPa)
• Flow Rate: 0.3 to 9.6 GPM
• Inlet: 3/4″ Female Pipe Thread
• Nozzle outlet trajectory: 25 degree standard or 13 degrees low angle
• Nozzle installed: Number 2

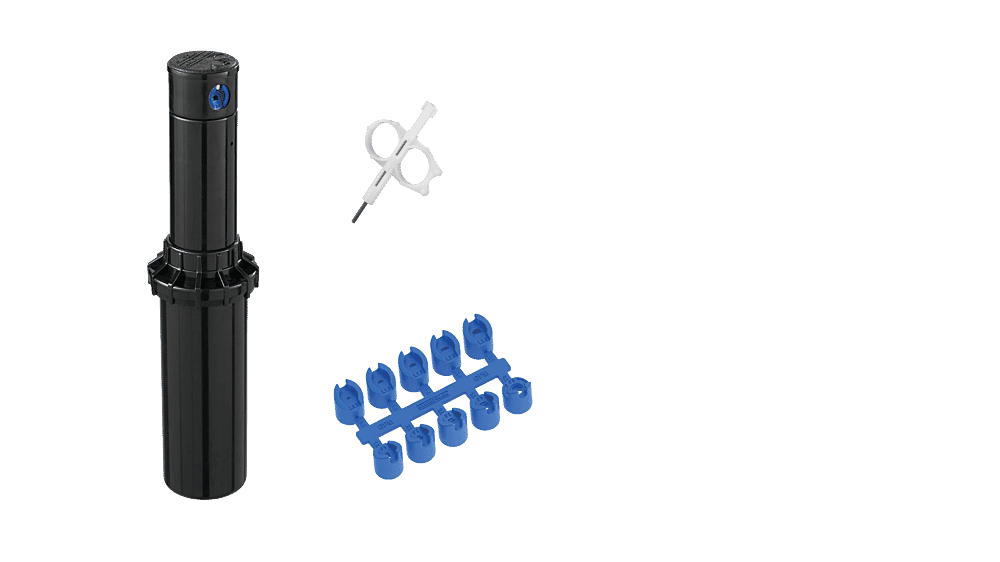

• Nozzles included: 10 nozzles consisting of standard and low angle nozzles.
• Adjustable Arc: 40 degrees to 360 degrees
• Pop-up Height: 4″
